Prefabricated Compact Substations: The Complete Guide for B2B Power Projects

Key Takeaways for Engineers & Procurement Managers

• All-in-One Integration: Combines HV switchgear, a power transformer, and LV switchboards into a single, fully sealed enclosure.

• Plug-and-Play Efficiency: Pre-assembled and routine-tested in the factory, reducing site installation time by up to 70%.

• Footprint Optimization: Saves up to 60% of ground area compared to traditional open-air substations.

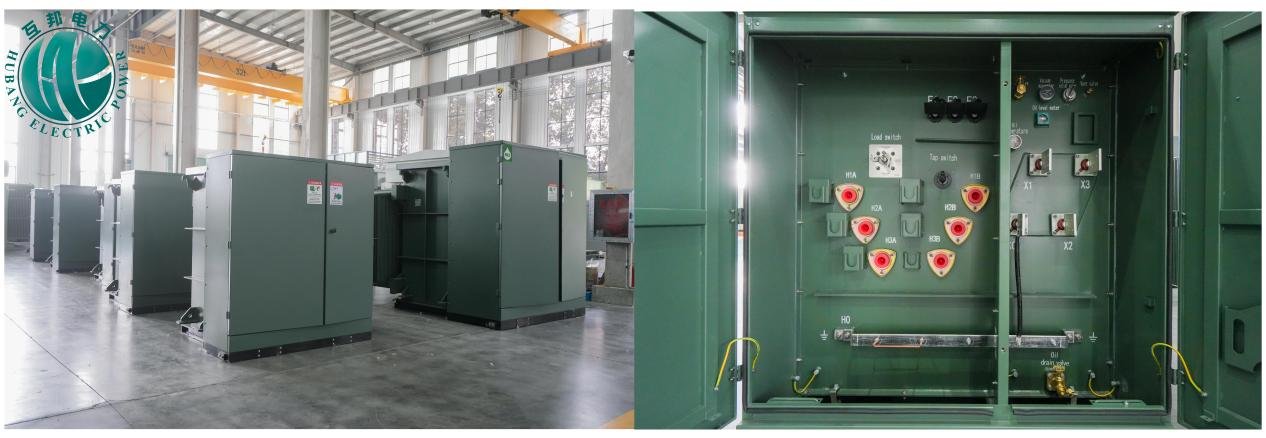

What is a Prefabricated Pad-Mounted Substation?

Pad-mounted substation (also widely known as a prefabricated compact substation) is an engineered, type-tested enclosure housing all critical distribution hardware. Instead of coordinating multiple vendors for separate transformers and switchgears on-site, a pad-mounted substation provides a complete, turnkey power node ready for immediate connection.

It integrates three primary operational compartments:

• High-Voltage (HV) Switchgear: Controls incoming voltage (e.g., 11kV, 22kV, or 33kV) with built-in protection breaker technology.

• Transformer Unit: Converts high voltage to distribution-level low voltage using high-efficiency oil-immersed or cast resin dry-type transformers.

• Low-Voltage (LV) Switchboard: Manages final power routing and circuit distribution to local networks or equipment.

European-Style vs. American-Style Pad-Mounted Substations

To help select the right equipment for your local grid specifications, here is a quick comparison between the two main design standards:

Core Advantages of Pad-Mounted Substations for Power Projects

1. Drastic Reduction in Civil Engineering Costs

Manufactured in accordance with IEC 62271-202, IEEE, and CSA standards, every pad-mounted unit undergoes stringent routine testing before dispatch. Site work is limited to concrete pad foundation preparation and cable termination, eliminating costly construction delays.

2. Engineered for Severe Environmental Conditions

Heavy-duty enclosures made from corrosion-resistant steel, aluminum alloy, or GRC materials achieve IP54/IP65 protection ratings. High-grade exterior coatings protect against severe UV exposure, coastal salt spray, and extreme temperature fluctuations.

3. Adaptability for Renewable Energy & Industrial Grids

Whether configured as a step-up pad-mounted transformer node for solar PV/wind farms or a primary step-down unit for mining operations, these substations provide stable power supply with smart monitoring (SCADA) capabilities.

Partner with Jiangsu Beichen Hubang Electric Power Co., Ltd.

At Jiangsu Beichen Hubang Electric Power Co., Ltd., we bring years of specialized manufacturing experience in power distribution equipment. Our engineering team designs and manufactures international-standard pad-mounted substations, oil-immersed transformers, and dry-type transformers built to power your global projects safely and efficiently.
