Oil-Immersed vs. Dry-Type Transformers: How to Choose the Right One for Your Project?

When sourcing power distribution equipment for large-scale industrial or commercial projects, some buyers may raise the question, "Should I choose an oil-immersed transformer or a dry-type transformer?" This is a critical decision.

Both technology products have distinct advantages, and the correct answer depends entirely on your specific application scenarios, installation environment, and safety requirements. As a first-line transformer source factory equipped with an autonomous R&D team and professional engineers, we not only provide standard products but can also custom-tailor solutions that perfectly align with your requirements.

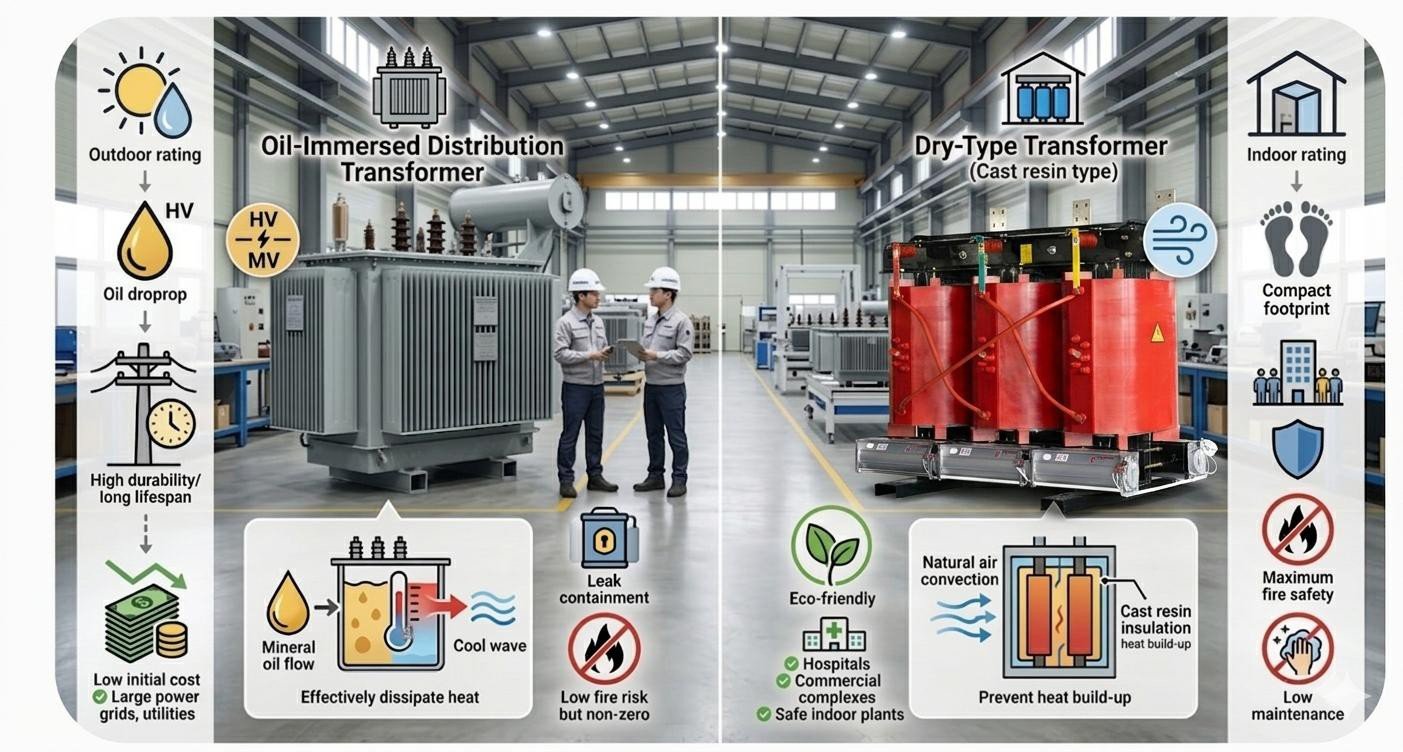

1. Oil-Immersed Transformers: High Capacity & Efficiency

Oil-immersed transformers utilize transformer insulation oil to cool their core components: the windings and the iron core. This liquid-cooled design features excellent heat dissipation capabilities, enabling the transformer to handle heavy-duty overload conditions better and enjoy a longer operational lifespan. They remain the industry standard for outdoor and heavy industrial applications.

• Higher Capacity & Voltage Ratings

Extremely ideal for large-scale power grids, utilities, heavy industrial plants, etc.

• Superior Heat Dissipation Performance

The liquid cooling efficiency is exceptionally high, allowing the transformer to better cope with overload conditions.

• High Cost-Effectiveness

Compared to dry-type transformer options of the identical capacity, the initial investment cost is lower.

• Longer Operational Lifespan

Provides outstanding durability in harsh outdoor environments.

2.Dry-Type Transformers: Ultimate Safety & Low Maintenance

Dry-type transformers are cooled via air circulation, utilizing epoxy resin or cast resin insulation instead of liquid insulation oil. They are primarily engineered and designed for indoor spaces and safety-critical environments.

• Ultimate Fire Safety

Highly flame-retardant with absolute zero risk of oil leakage or explosion hazard, making them perfectly suited for high-rise buildings, hospitals, and commercial complexes.

• Low Maintenance Costs

No oil level checks or oil testing are required, significantly eliminating long-term operational and maintenance hassles.

• Environmentally Friendly

Zero risk of oil spills, completely eliminating any latent threats of soil or water resource contamination.

• Space-Saving Footprint

The compact design allows for direct installation close to the electrical load center, effectively reducing cable transmission losses.

3. Core Parameters Comparison at a Glance

4. How to Choose: Quick Procurement Guide

To maximize your Return on Investment (ROI), please refer to the following screening checklist:

• Installation Location:  Choose Dry-Type for indoor locations and densely populated areas; Oil-Immersed is the preferred choice for outdoor substations.

• Budget and Service Lifespan: When facing high power capacity demands, oil-immersed transformers provide lower initial upfront costs; Meanwhile, dry-type options save indoor floor space and cut down long-term post-installation maintenance expenses.

• Environmental and Fire Regulations: If your project strictly enforces eco-compliance and fire safety certifications, dry-type transformers are the standard premier choice.

5. Why Factory R&D Capabilities & Customized Design Are Paramount?

Off-the-shelf standard transformers rarely match unique project constraints. Whether you require specific voltage ratios, low-loss performance parameters, or customized protective enclosures, our R&D engineers will collaborate closely with your technical team.

Hubang Electric provides fully customized OEM/ODM solutions. Whether your project demands high-efficiency amorphous alloy core designs, integrated compact substation transformer configurations, or specific Basic Insulation Level (BIL) requirements, our engineering will perfectly match your local power project standards.

If you require professional engineering assistance, please contact us immediately and send through your technical specifications. Our engineers will provide a comprehensive comparative analysis, exclusive engineering blueprint drawings, and an individualized transformer selection guide tailored strictly according to your geographic project location and utility grid codes.
